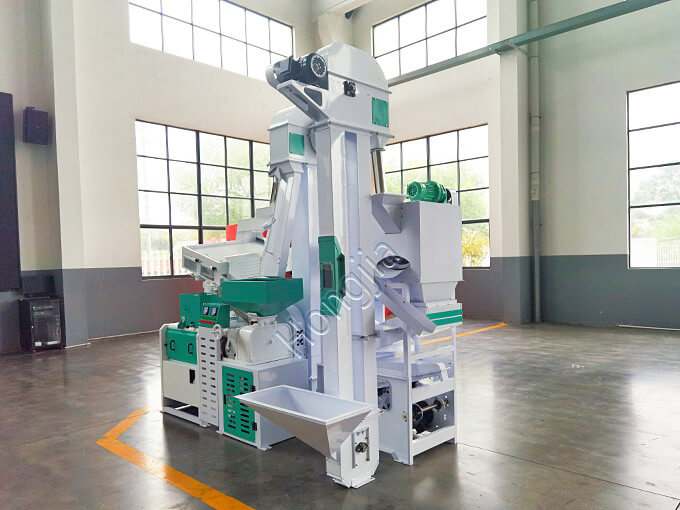

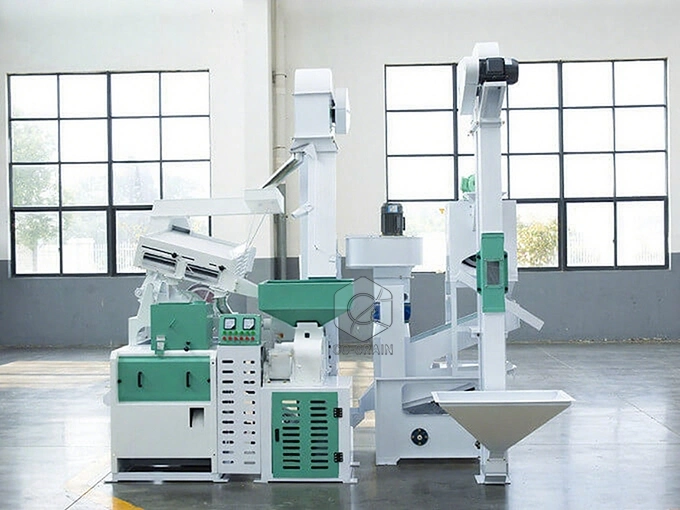

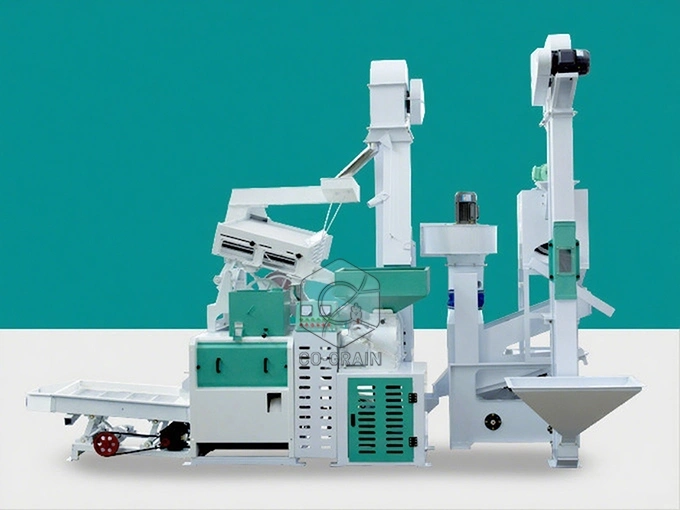

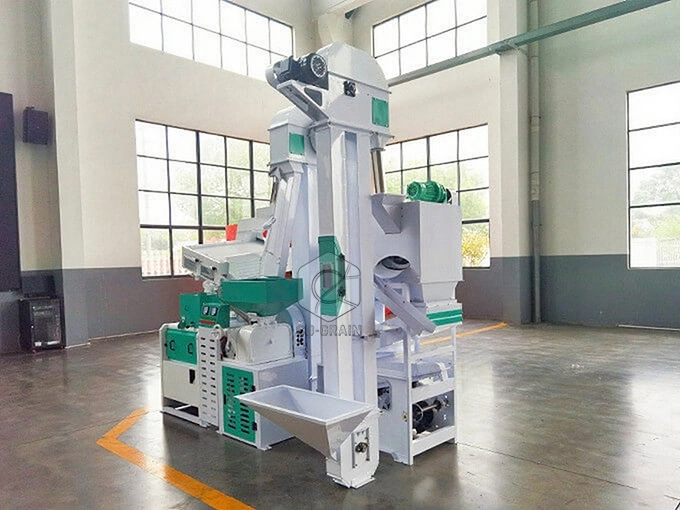

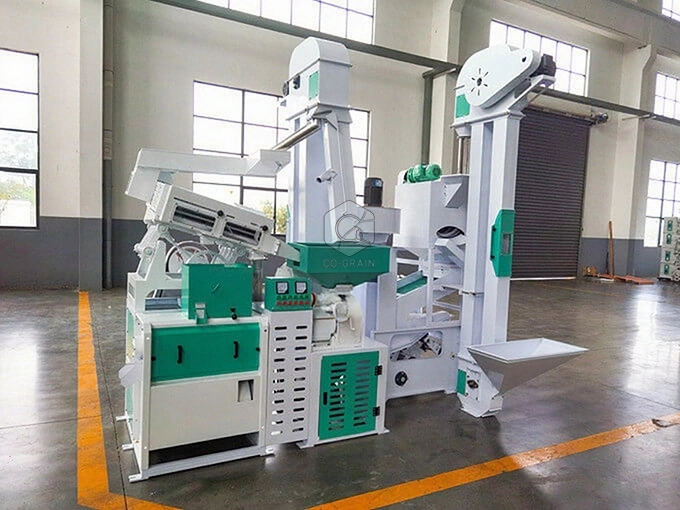

What is 20T/D Standard Rice Mill Plant?

This is our newly designed combined rice mill machine which can process paddy rice into national standard white rice just in one process. It contains all the machines need to process paddy into rice, such as a combined rice cleaning machine, rice huller machine, rice separator machine, rice mill machine, rice elevator, etc. The paddy separation effect is very good, high working efficiency, small size can be easily set in any place or station or farms according to user's needs. Easy to operate and maintain, with less broken rate.

This 20T/D rice processing mill is suitable for small-scale rice milling process, which can process about 1100-1300kg paddy and get about 800-1000kg white rice per hour. The capacity and the machines in the rice processing machine can be customized to your special requirement. So it’s the most ideal rice mill machine for urban, rural, small, and medium-sized rice processing plants.

Make a Quick Inquiry Now !

What is 20T/D Standard Rice Mill Plant Working Process?

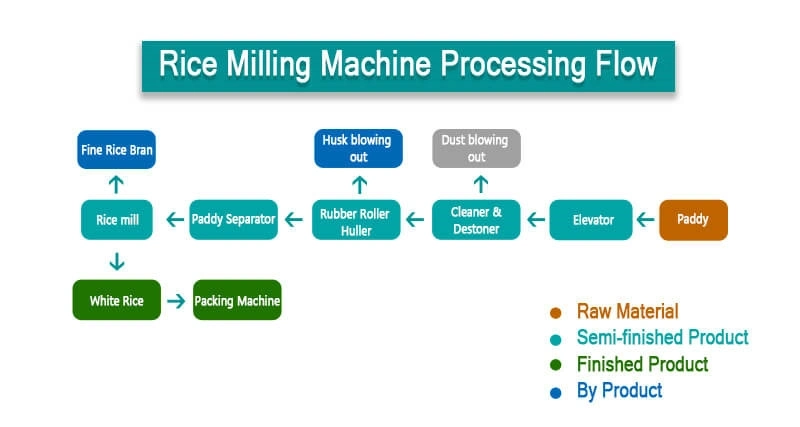

The 20T/D standard rice mill plant can process paddy into national standard rice just in one process at the following flow chart: Raw material feeding-Vibrated cleaner & Destoner → Rice Husker→Paddy Rice Separator → Rice Mill → Standard White Rice， Then the rice can be on market for sale.

Make a Quick Inquiry Now !

What Is The Structure of the 20T/D Standard Rice Mill Plant?

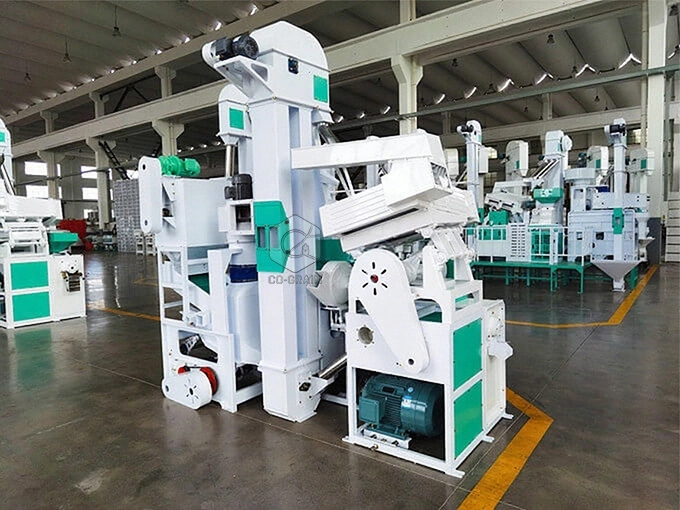

This 20T/D modern combined rice mill machine is a standard automatic rice processing machine, which includes the main process of paddy cleaning, stone removal, rice separating, rice hulling, rice milling, etc. With one set of rice mill machines, you can get the standard rice. Therefore, this type of rice milling equipment is very popular. Welcome, contact us for the details.

Make a Quick Inquiry Now !

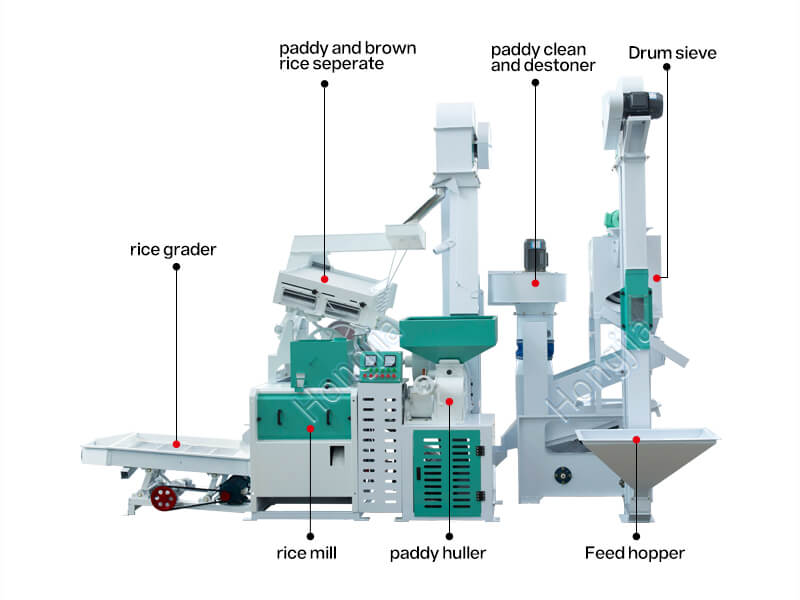

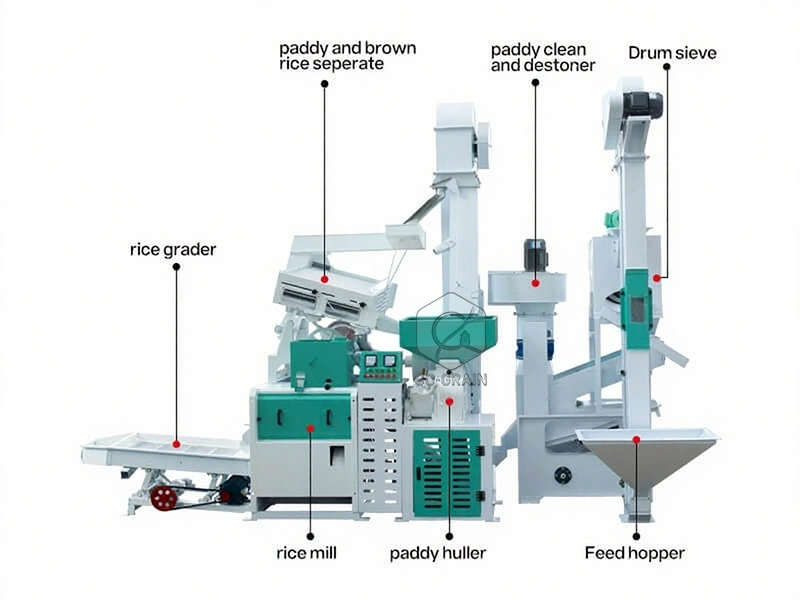

The Modern Rice Milling System Consists of:

Combined Paddy Cleaner: removing all impurities and unfilled grains from the paddy;

Rice Hulling Machine: a rice huller or paddy husker is an agricultural machine used to automate the process of removing the chaff (the outer husks) of grains of rice;

Paddy Separator: it is mainly used for separating brown rice from paddy making use of their differences in specific gravity and friction coefficient in three parts: paddy, brown rice, and a mix of both;

Rice Milling Machine: the rice whitening machine is developed for rice whitening, which is an advanced technology of the world rice mill whitener at present to make rice temperature down, bran content less, and broken increment lower;

Broken Rice Sieve: to separate the good rice and the broken rice;

NO.	Name	Model	Power(kW)
1	Single elevator 3m	TDTG18/08	0.75
2	Drum pre-clean machine	SCQY40	0.55
3	Paddy cleaned and destoner machine	ZQS50A	1.1
4	Fan	4-72	1.5
5	Double elevator	TDTG18/08*2	0.75
6	6inches rubber roller	LG-15A	4
7	Paddy and rice separate machine	MGCZ70*5A	0.75
8	Sand roller rice mill machine	NS150	15

Optional items:

Rice Polishing Machine: rice polishing machine, polishes the rice surface by spraying water, which facilities the formation of a smooth gelatinous layer that prolongs the preservation time. Extended polishing chamber to produce high-quality rice;

Rice Color Sorter: the rice color sorting machine is used to sort bad, milky, Chalky, Paddy, and foreign materials out. The CCD signal while blanking is been tested. If it is found that there are unqualified rice or impurities in the materials, the ejector will blow the defective goods in the hopper;

Rice Grading Machine: the rice grader can sieve milled rice efficiently and accurately into several classes: head rice, large broken, medium broken, small broken, etc;

Rice Packing Machine: rice weighing and bagging: preparing milled rice for transport to the customer;

Product Details of The 20T/D Rice Mill Plant

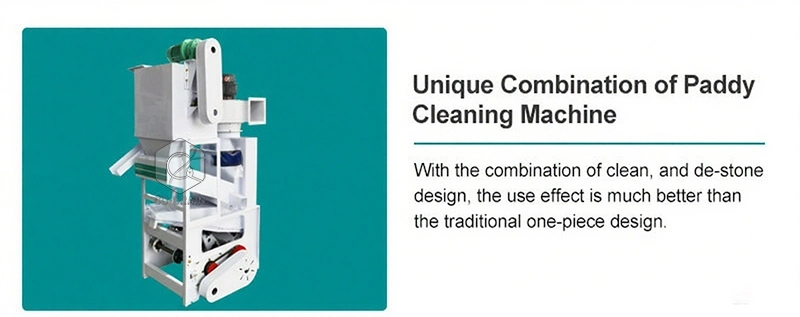

1. Unique Combination of Paddy Cleaning Machine

With the combination of clean, and de-stone design, the use effect is much better than the traditional one-piece design. Large air volume design, excellent stone removal effect, combined with high-strength vibration-absorbing bearing configuration, the body movement is stable, firm, and reliable, low vibration, low noise, less dust;

The stone removal part adopts the design of large air volume and suction, with large air volume and good stone removal effect;

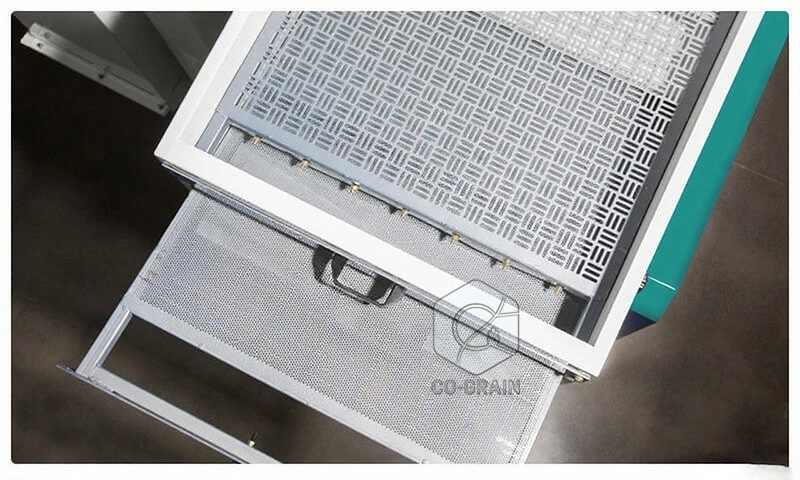

The cleaning part adopts a multi-layer drum screen mechanism, which has high cleaning efficiency and clean-up, so it can remove fine impurities and stones;

Make a Quick Inquiry Now !

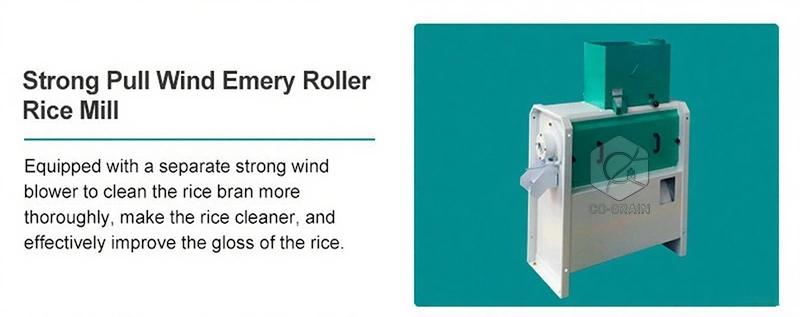

2. Strong Pull Wind Emery Roller Rice Mill

Equipped with a separate strong wind blower to clean the rice bran more thoroughly, make the rice cleaner, and effectively improve the gloss of the rice;

Lower the temperature of the rice, thereby effectively reducing the rate of broken rice;

The operation height is reduced, the operation is more convenient, and the daily maintenance is convenient;

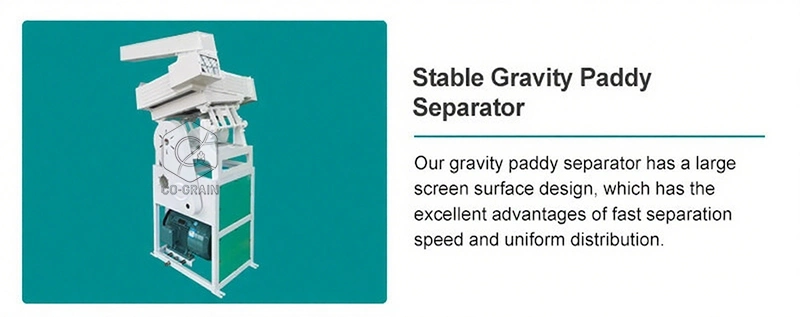

3. Stable Gravity Paddy Separator

Our gravity paddy separator has a large screen surface design, which has the excellent advantages of fast separation speed and uniform distribution;

The horizontal and vertical angles of the screen surface can be adjusted, so it is suitable for different types of rice;

Low broken rice rate;

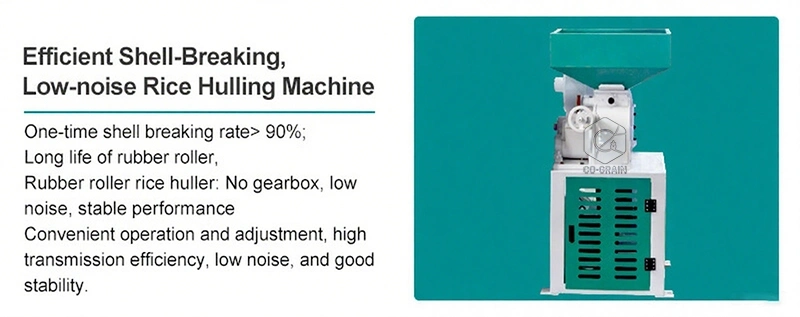

4. Efficient Shell-Breaking, Low-noise Rice Hulling Machine

One-time shell breaking rate> 90%;

Long life of rubber roller;

Rubber roller rice huller: No gearbox, low noise, stable performance;

Convenient operation and adjustment, high transmission efficiency, low noise, and good stability;

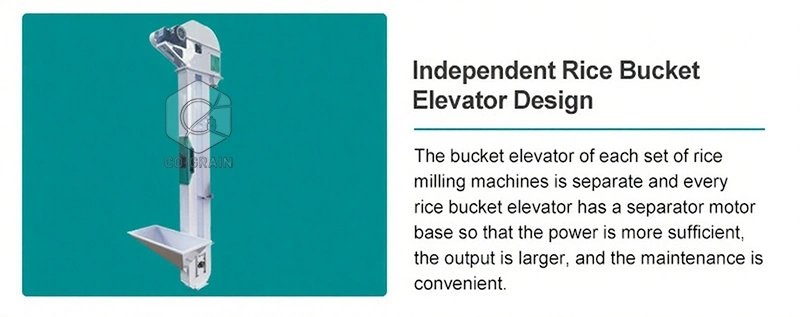

5. Independent Rice Bucket Elevator Design

The bucket elevator of each set of rice milling machines is separate and every rice bucket elevator has a separator motor base so that the power is more sufficient, the output is larger, and the maintenance is convenient.

20T/D Standard Rice Mill Plant Advantages

1. Rice milling speed is fast, the complete set of equipment has a daily output of about 20 tons;

2. The structure is neat and beautiful, and the energy consumption is low. The operation and maintenance are convenient, and the disassembly and assembly of all equipment are very convenient;

3. The rice milling part of the equipment adopts negative pressure rice milling technology, which has low rice temperature, no chaff, and fewer broken rice rate;

4. Our processing technology: Optical fiber cutting, CNC bending, CNC machine tools, spraying process, high-position spray baking, etc;

5. According to the requirement of the crafting flow, “one” arrangement, the main operations are concentrated in the middle, convenient to operate;

6. High-strength vibration-absorbing bearing configuration, the machine body moves smoothly, is firm and reliable, has low vibration, low noise, and low dust;

7. Better cleaning effect can remove the impurities among the grains like stone, iron, dust, stalks and etc;
