Our 30T/D modern rice mill machine is one newly designed rice mill processing machine to meet different market needs. It is suitable for the middle-scale rice milling process, which can process about 40-42ton paddy per day and get about 1500-1800kg white rice per hour. And the capacity and the machines in the rice mill equipment can be customized as your special requirement. So it’s the most ideal rice processing equipment for farmlands, towns, grain shops, and specialized households.
What is New designed 30T/D Standard Rice Mill Plant?
Our 30T/D modern rice mill machine is one newly designed rice mill processing machine to meet different market needs. It can process paddy rice into national standard white rice just in one process. This 30T/D modern rice milling machine is suitable for the middle-scale rice milling process, which can process about 40-42ton paddy per day and get about 1500-1800kg of white rice per hour. And the capacity and the machines in the rice mill equipment can be customized to your special requirement. So it’s the most ideal rice processing equipment for farmlands, towns, grain shops, and specialized households.

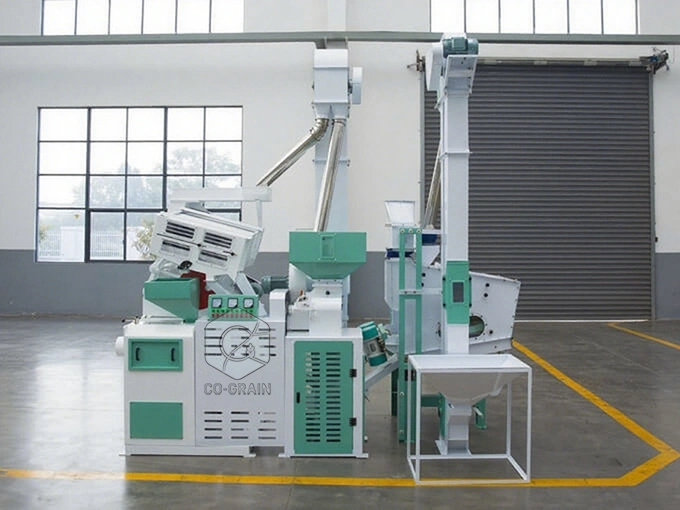

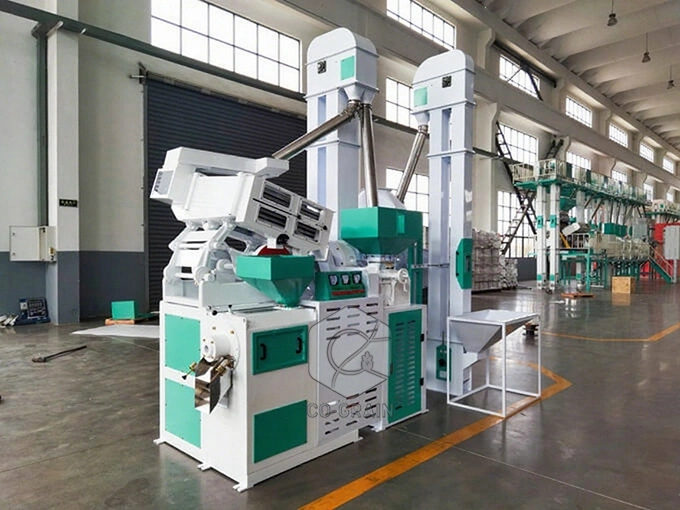

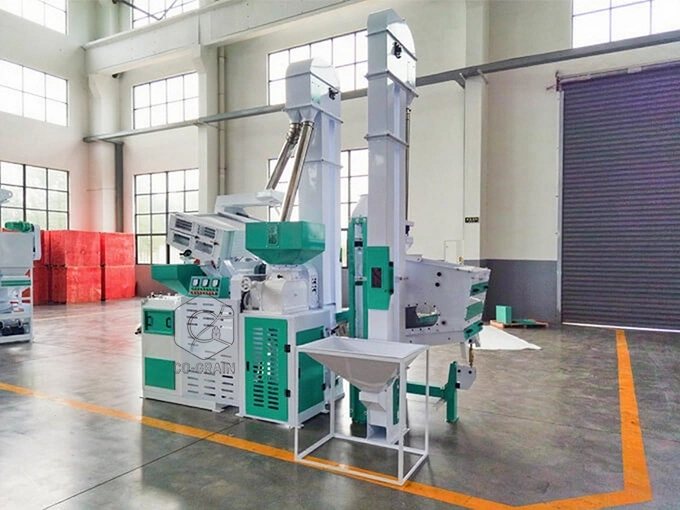

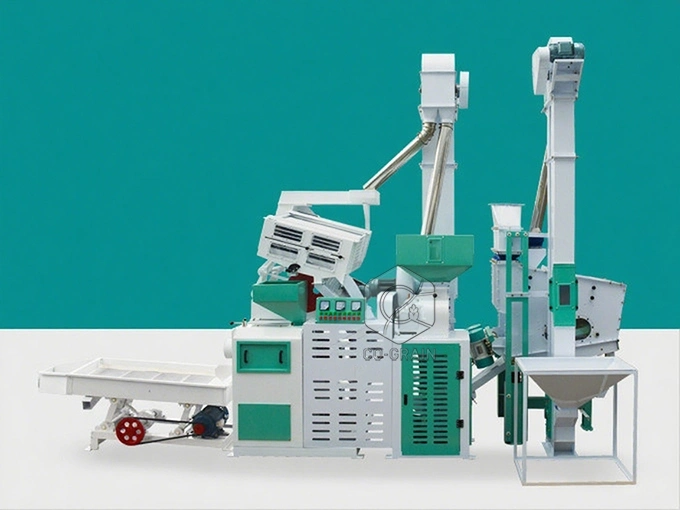

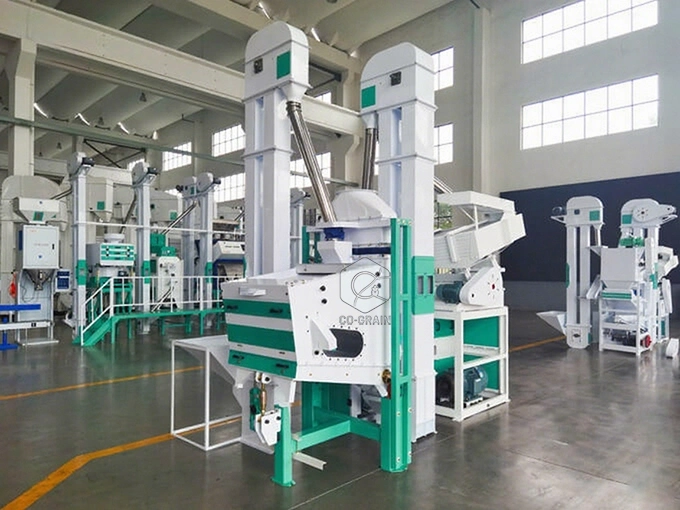

This modern rice mill plant consists of the combined rice cleaner, rice destoner, rice huller, paddy rice separator, rice mill, broken rice screen, rice bucket elevator, etc. It is automatic working, convenient to operate and use, and widely used in small or medium-sized rice mill factories.

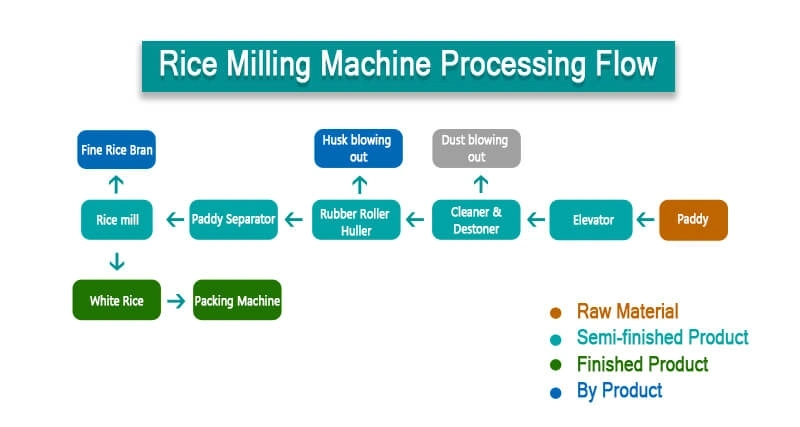

The 30T/D standard rice mill plant can process paddy into national standard rice just in one process at the following flow chart: Raw material feeding-Vibrated cleaner & Destoner → Rice Husker→Paddy Rice Separator → Rice Mill → Standard White Rice, Then the rice can be on market for sale.
What Is The Structure of the 30T/D Standard Rice Mill Plant?

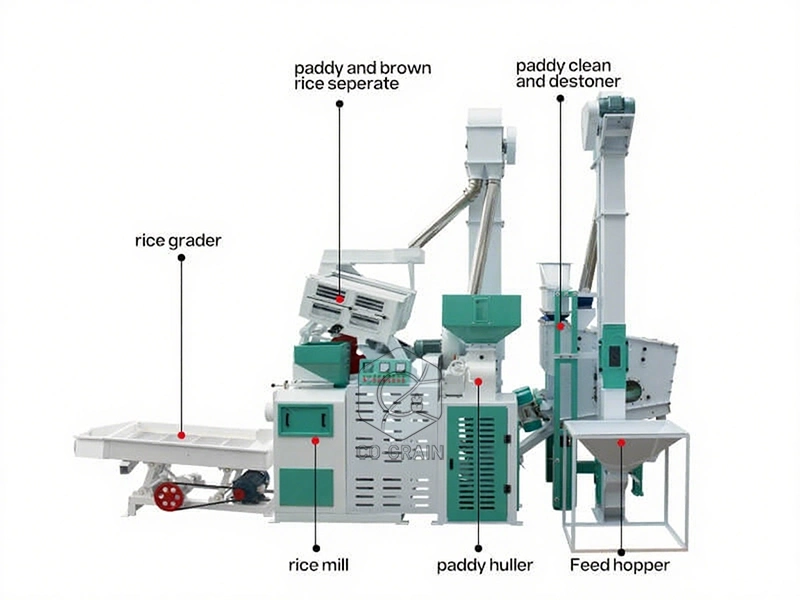

This 30T/D modern rice milling machine is a standard automatic rice production line, which includes the main process of paddy cleaning, stone removal, rice separating, rice hulling, rice milling, etc. With one set of rice mill machines, you can get the standard rice. Therefore, this type of rice milling equipment is very popular. Welcome, contact us for the details.
Combined Paddy Cleaner: removing all impurities and unfilled grains from the paddy;
Rice Hulling Machine: a rice huller or paddy husker is an agricultural machine used to automate the process of removing the chaff (the outer husks) of grains of rice.
Paddy Separator: it is mainly used for separating brown rice from paddy making use of their differences in specific gravity and friction coefficient in three parts: paddy, brown rice, and a mix of both.
Rice Milling Machine: the rice whitening machine is developed for rice whitening, which is an advanced technology of the world rice mill whitener at present to make rice temperature down, bran content less, and broken increment lower.
Broken Rice Sieve: to separate the good rice and the broken rice.
No.
Name
Model
Power
1
Single elevator
TDTG20/11
1.1KW
2
Combined cleaner destoner
ZQS70
0.5KW
3
Centrifugal fan
4-72
3KW
4
Double hoist elevator
TDTG18/08*2
1.1KW
5
8 inches rubber roller huller
LG-20
5.5KW
6
Paddy rice separator
MGCZ80*7
1.1KW
7
Sand roller rice mill
MNMS15B
18.5KW
8
broken rice screen
0.37KW
Optional items:
Rice Polishing Machine: rice polishing machine, polishes the rice surface by spraying water, which facilities the formation of a smooth gelatinous layer that prolongs the preservation time. Extended polishing chamber to produce high-quality rice
Rice Color Sorter: the rice color sorting machine is used to sort bad, milky, Chalky, Paddy, and foreign materials out. The CCD signal while blanking is been tested. If it is found that there are unqualified rice or impurities in the materials, the ejector will blow the defective goods in the hopper.
Rice Grading Machine: the rice grader can sieve milled rice efficiently and accurately into several classes: head rice, large broken, medium broken, small broken, etc.
Rice Packing Machine: rice weighing and bagging: preparing milled rice for transport to the customer.
Product Details of The 30T/D Rice Mill Plant

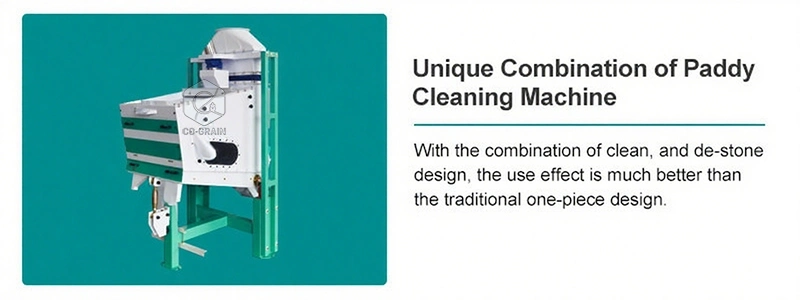

Unique Combination of Paddy Cleaning Machine
With the combination of clean, and de-stone design, the use effect is much better than the traditional one-piece design. Large air volume design, excellent stone removal effect, combined with high-strength vibration-absorbing bearing configuration, the body movement is stable, firm, and reliable, low vibration, low noise, less dust;
The stone removal part adopts the design of large air volume and suction, with large air volume and good stone removal effect;
The cleaning part adopts a multi-layer drum screen mechanism, which has high cleaning efficiency and clean-up, so it can remove fine impurities and stones;
A square rotation screen for the destoner machine will make the paddy cleaner;

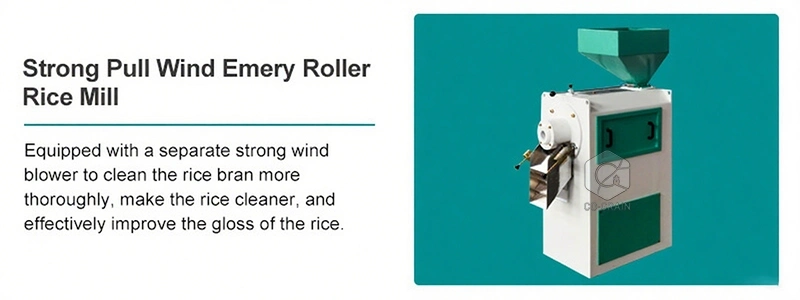

Equipped with a separate strong wind blower to clean the rice bran more thoroughly, make the rice cleaner, and effectively improve the gloss of the rice;
Lower the temperature of the rice, thereby effectively reducing the rate of broken rice;
The operation height is reduced, the operation is more convenient, and the daily maintenance is convenient;
Stable Gravity Paddy Separator
Our gravity paddy separator has a large screen surface design, which has the excellent advantages of fast separation speed and uniform distribution;
The horizontal and vertical angles of the screen surface can be adjusted, so it is suitable for different types of rice;

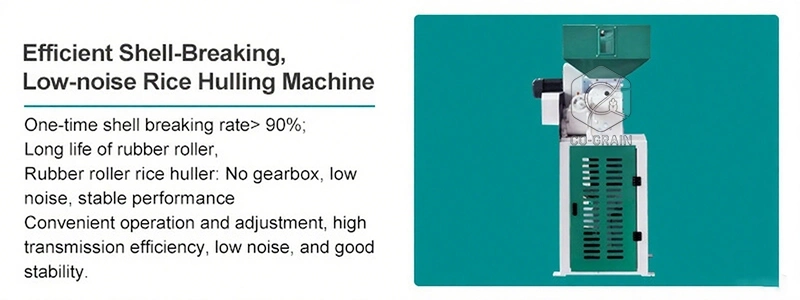

Long life of rubber roller, Rubber roller rice huller: No gearbox, low noise, stable performance;
Convenient operation and adjustment, high transmission efficiency, low noise, and good stability;

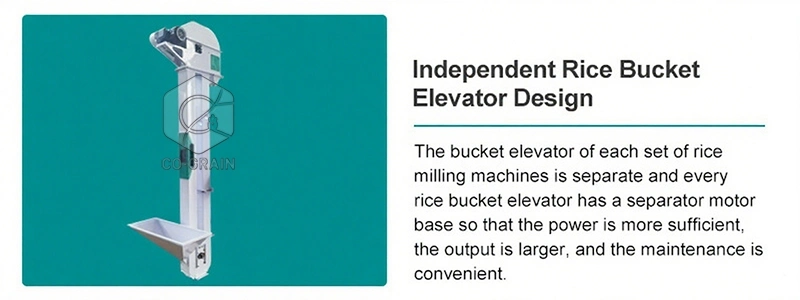

Independent Rice Bucket Elevator Design
The bucket elevator of each set of rice milling machines is separate and every rice bucket elevator has a separator motor base so that the power is more sufficient, the output is larger, and the maintenance is convenient.
30T/D Standard Rice Mill Plant Advantages
1. The combined rice mill plant with compact structure, low energy consumption, high working efficiency, easy to operate and maintain, as well as durable to use, good performance
2. The destoner cleaner with a high cleaning rate above 98% can guarantee the machine works safely.
3. The rice milling parts adopt negative pressure rice milling technology, low rice temperature, with a high milling rate of 65-70%, low rice broken rate
4. Easy for spare parts replacement.
5. Easy for machine installation, small investment, large return. it can work continuously 24 hours
6. It can improve the milling precision of rice according to the demands of users by adding some follow-up equipment, like a polisher, color sorter, white rice grader, and rice packing machine.
7. The rice milling part of the equipment adopts negative pressure rice milling technology, which has low rice temperature, no chaff, and fewer broken rice rate.
8. According to the requirement of the crafting flow, “one” arrangement, the main operations are concentrated in the middle, convenient to operate.
