General introduction for paddy cleaning:

During the process of paddy harvesting, drying, transportation, and storage, it will be mixed with various impurities. If these impurities are in the paddy processing line, it will adversely affect the paddy processing and rice quality. Therefore, the rice cleaner machine is one important machine used in rice milling.

According to the physical properties of impurities and characteristics of cleaning in paddy, there are large impurities, heavy impurities, small impurities, side stones, light impurities, tares, and magnetic metal impurities as follows:

Large impurities: impurities remaining on the 5.0 round-hole sieve

Medium impurities: the impurities that pass through the 5.0mm round hole sieve and remain on the 2.0mm round hole sieve

Small impurities: the impurities that pass through the 2mm round hole sieve.

Light impurities: impurities whose specific gravity is smaller than that of rice

Side-by-side stones: stones, tiles, mud blocks, etc. with a grain size similar to that of rice

Barnyard tares: weed seeds in paddy fields

Metal impurities: Metal impurities with magnetic properties.

The Purpose of paddy cleaning:

Impurities in paddy will not only increase the weight and volume of raw materials, thereby increasing transportation and storage costs, affect the safe storage of rice, and even bring great danger to paddy processing. Therefore, the purpose of rice cleaner is to improve the technological effect of processing equipment and ensure safe production. On the other hand, it is to improve the purity of products and ensure the health of consumers. It also reduces transportation and storage costs. And to ensure safe storage.

Paddy cleaner different types:

In rice processing plants, the cleaning method is widely used. According to its structure and function, the cleaning equipment can be divided into cylinder pre-cleaner, reciprocating vibrating paddy cleaner, high-speed vibrating rice cleaner, and plane rotary paddy cleaner. The rice cleaning machine is often combined with wind separation equipment to remove light impurities while removing large impurities, medium impurities, and small impurities in rice.

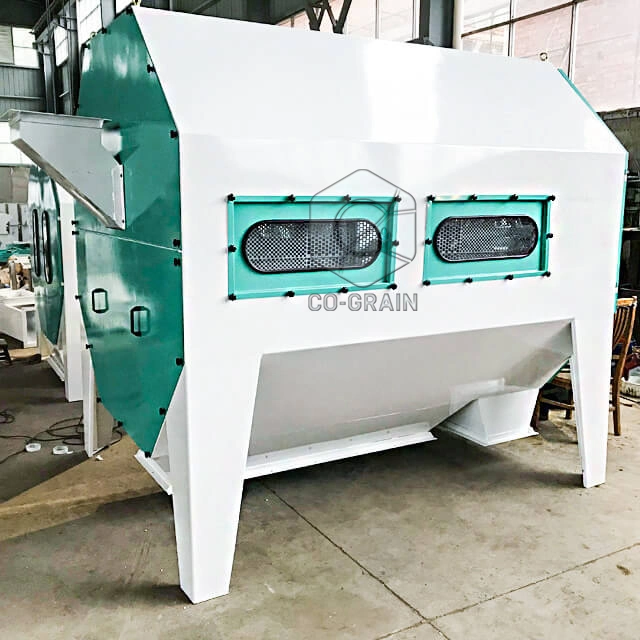

1. Cylinder pre-cleaner TCQY

The cylinder pre-cleaner is a preliminary rice cleaner equipment used for paddy storage and paddy processing plants. It is used to separate large impurities such as straw, rope ends, masonry, and mud blocks in grains. It plays the important role in improving the quality of raw materials in storage, improving the efficiency of subsequent cleaning equipment, preventing pipeline blockage, and avoiding damage to equipment.

This cylinder pre-cleaner is composed of an observation window, feed port, large miscellaneous outlet, suction port, discharge port, transmission device, screen drum, cleaning brush, casing, and other components. It has the characteristics of high output, good cleaning effect, low power consumption, simple structure, easy installation, and maintenance.

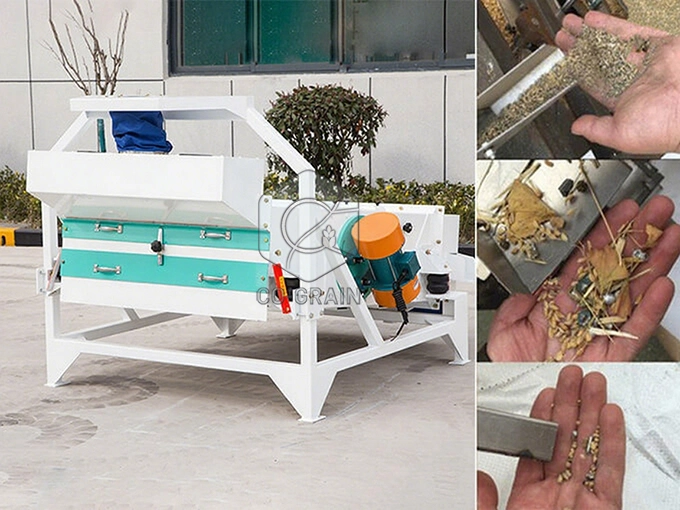

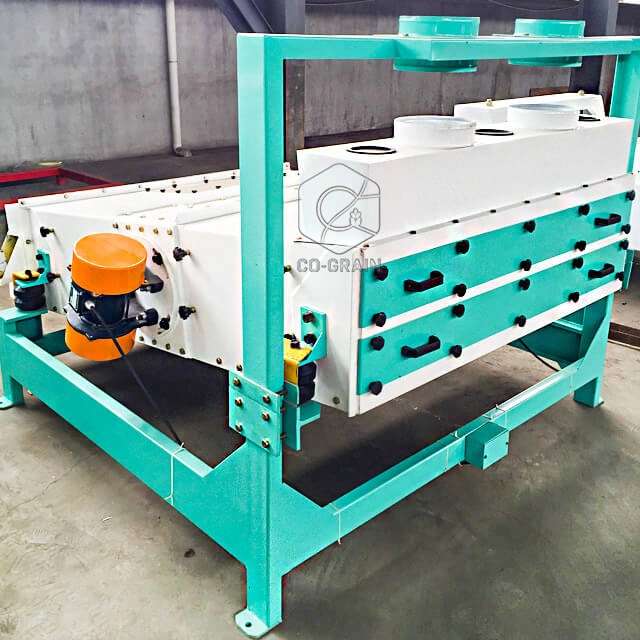

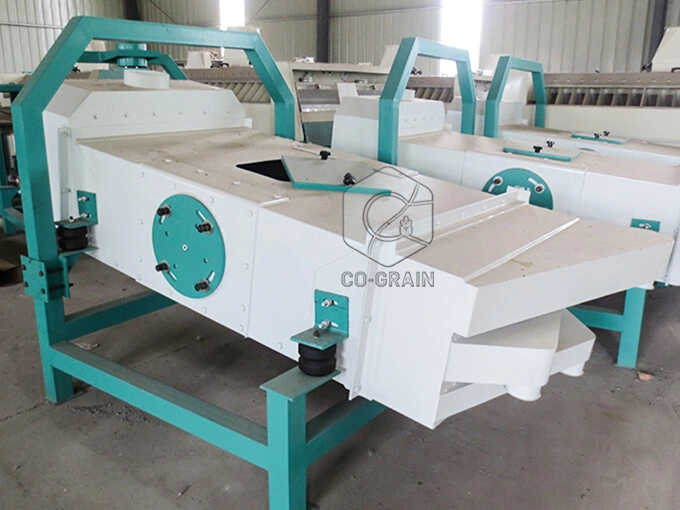

2. Vibrating paddy cleaner TQLZ

The Vibrating paddy cleaner is suitable for the cleaning of grain processing plants and oil plants. It can clean the large, small, and light impurities from wheat, paddy, corn according to different screen hole sizes. It is equipped with two layers of screen, which has good sealing performance and is very effective for cleaning grains which is containing more impurities.

With advantages of compact structure and good sealing performance, low noise and low energy consumption, stable operation, and good cleaning effect, as well, the vibration direction and the inclination of the screen body can be adjusted as required.

3. High-speed vibrating rice cleaner SG

The high-speed vibrating rice cleaner machine is mainly used to remove barnyard grass in rice mills and it can also be used to remove small impurities. Its main features are: the vibration frequency of the screen body is high, generally 1400-1500r/min, and the amplitude is small, only 1.5mm.

4. Plane rotary paddy cleaner

The TQLM plane rotary paddy cleaner is mainly used for raw material cleaning in milling, feed, rice milling, chemical industry, oil extraction, and other industries. It can clean various granular materials such as wheat, corn, rice, and oil by replacing the screen with different hole sizes. It is with high flow, high cleaning effect, smooth plane rotation, and low noise. When using match with the suction duct, it will protect the environment.

How to choose the rice cleaning machine?

1) Consider the applicability. Before purchasing, you should learn the site environment where the paddy cleaner is installed, the size of the site, the size of the equipment, and whether the material of the machine is suitable for the surrounding environment, etc. also need to learn something about the spare parts and service life.

2) Considering environmental protection and energy saving, with the development of science and technology, people's requirements for environmental protection are getting higher and higher, Energy-saving also reduces costs for enterprises. Before purchasing, you should check more about the power consumption of the motor.

3) Considering safety, safety issues cannot be ignored. The so-called safety of equipment means the equipment has certain protective measures and certain safety operation procedures, and there will be no major safety hazards. In general, when purchasing a rice cleaning machine, you must know more about the equipment itself.
