Our 30T/D complete set rice mill plants are a complete rice processing production line from rice cleaning, rice destoning, rice husking, rice milling, rice grading, rice mist polishing and rice color sorting, rice packing. It can process 40-42 tons per paddy per day and get 1500-1800kg final rice per hour. This complete rice processing plant can also customize to be equipped with a steelwork platform, raw material silo, finished rice storage silos, and other systems to make the entire line more practical and eco-friendly to use.
Our 30T/D complete set rice mill plants are a complete rice processing production line from rice cleaning, rice destoning, rice husking, rice milling, rice grading, rice mist polishing, rice color sorting, and rice packing. It can process 40-42 tons per paddy per day and get 1500-1800kg of final rice per hour. This complete rice processing plant can also customize to be equipped with a steelwork platform, raw material silo, finished rice storage silos, and other systems to make the entire line more practical and eco-friendly to use.
The rice milling machine adopts high-quality rice vibrating screen, rice destoner, rice rubber roller husker, rice separator, rice milling machine, white rice grading machine, high-efficiency bucket elevator, and complete set of rice milling machine electrical console. This complete set of rice milling machines integrates rice cleaning, rice shelling, rice separating, rice milling, rice polishing, rice grading, rice polishing, rice sorting, and rice packing in one. And, it can be fully automatic and continuous production.
What is 30T/D Complete Rice Mill Plant Working Process?

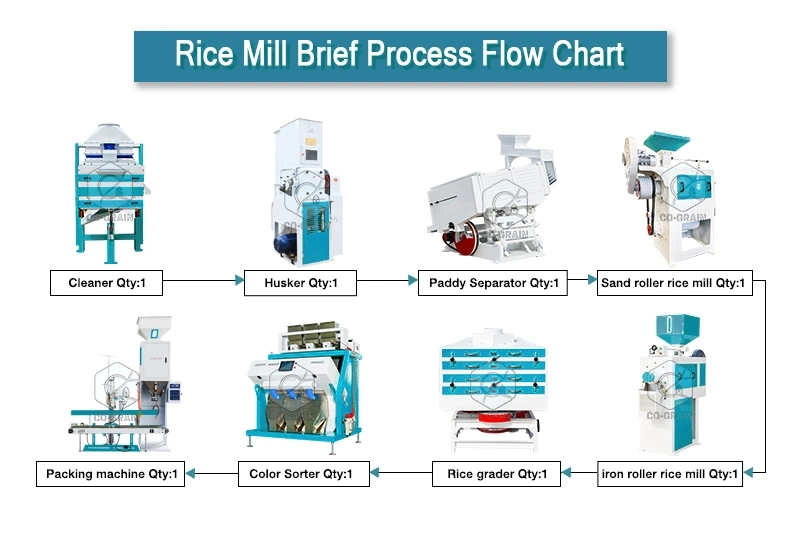

The 30T/D complete rice mill project can process paddy into national standard rice just in one process at the following flow chart: Raw material feeding-Vibrated cleaner & Destoner → Rice Husker→Paddy Rice Separator → Rice Mill →Rice Polisher → Rice Grader→ Rice Color Sorter → Packing, Then the rice can be on market for sale.

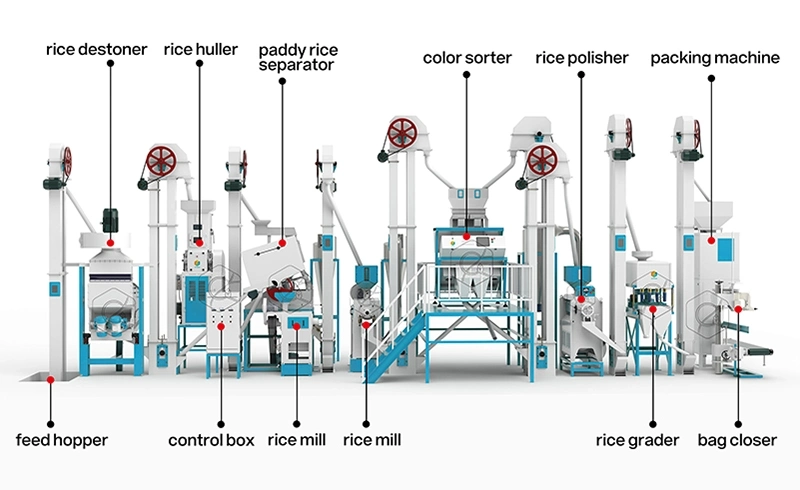

What Is The Structure of the 30T/D Complete Rice Mill Plant?
Our 30T/D complete rice mill plant is a fully automatic rice processing plant, which includes the entire process from paddy cleaning, stone removal, rice hulling, rice separating, rice milling, rice polishing, and rice color sorting, rice grading, and final rice packaging. You no longer need any other machines, you can realize the entire processing from paddy rice to the final finished white rice. Therefore, this complete set of rice milling equipment is very popular. Welcome, contact us for the details.
Hopper: feeding raw paddy material to the rice mill machine
Combined paddy cleaner & de-stoner: other light impurities such as dust and debris, block, the stone should be removed as much as possible to reach a better cleaning effect.
Rice husker: remove husk from paddy.
Rice separator: it is mainly used for separating brown rice from paddy making use of their differences in specific gravity and friction coefficient in three parts: paddy, brown rice, and a mix of both.
Rice mill machine: the rice whitening machine is developed for rice whitening, which is an advanced technology of the world rice mill whitener at present to make rice temperature down, bran content less, and broken increment lower.
Rice polisher: polishes the rice surface by spraying water, which facilitates the formation of a smooth gelatinous layer that prolongs the preservation time. Extended polishing chamber to produce high-quality rice.
Rice grading machine: the rice grader can sieve milled rice efficiently and accurately into several classes: head rice, large broken, medium broken, small broken, etc.
Rice color sorter: the rice color sorting machine is used to sort bad, milky, Chalky, Paddy, and foreign materials. The CCD signal while blanking is been tested. If it is found that there are unqualified rice or impurities in the materials, the ejector will blow the defective goods in the hopper.
Rice packing machine: this rationed automatic weighing packing machine consists of a material box, a packing scale, a sewing machine, and a conveyor belt. It can cooperate work with all the model's rice mill production lines, and also for the packing bag capacity can choose 1-50kg per bag for your needs.
No.
Name
Model
1
Combined cleaning screen
ZQS70
2
Rice huller
MLGT25
3
Paddy separator
MGCZ100*7
4
Sand roller rice mill
MNMS15E
5
Iron roller rice mill
MNMT128E
6
White rice grader
MMJP80*3
7
Elevator
TDTG20/09
8
Rice polisher
MPG14.5
9
Rice color sorter
128
10
Rice packing machine
DCS-50
Product Details of The 30T/D Rice Mill Plant
Unique Combination of Paddy Cleaning Machine
With the combination of clean, and de-stone design, the use effect is much better than the traditional one-piece design. Large air volume design, excellent stone removal effect, combined with high-strength vibration-absorbing bearing configuration, the body movement is stable, firm, and reliable, low vibration, low noise, less dust;
The stone removal part adopts the design of large air volume and suction, with large air volume and good stone removal effect;
The cleaning part adopts a multi-layer drum screen mechanism, which has high cleaning efficiency and clean-up, so it can remove fine impurities and stones;
A square rotation screen for the destoner machine will make the paddy cleaner;
Equipped with a separate strong wind blower to clean the rice bran more thoroughly, make the rice cleaner, and effectively improve the gloss of the rice;
Lower the temperature of the rice, thereby effectively reducing the rate of broken rice;
The operation height is reduced, the operation is more convenient, and the daily maintenance is convenient;
Stable Gravity Paddy Separator
Our gravity paddy separator has a large screen surface design, which has the excellent advantages of fast separation speed and uniform distribution;
The horizontal and vertical angles of the screen surface can be adjusted, so it is suitable for different types of rice;
Long life of rubber roller, 8-inch rubber roller rice huller: No gearbox, low noise, stable performance
Convenient operation and adjustment, high transmission efficiency, low noise, and good stability.
Independent Rice Bucket Elevator Design
The bucket elevator of each set of rice milling machines is separate and every rice bucket elevator has a separator motor base so that the power is more sufficient, the output is larger, and the maintenance is convenient.
Advantages of The 30T/D Rice Mill Plant
1. This complete set rice mill machine covers an area of an area small, small investment, and applies the latest technology of rice milling, improves the milled rice rate, reduces broken, lowers temperature meters, has good bran removal effect, stable mechanical performance, convenient operation, and maintenance;
2. Every major operation unit is driven by an independent generator, which is controlled by an independent control panel;
3. Craftwork can be designed specially, combined flexibly, and processed into different kinds of excellent rice according to different clients' needs;
4. The device is coated with a technique of static spray coating; the coating looks smooth and fine and is weatherproof;
5. The feeding pipes are made of smooth glass, which looks good and is very durable, too;
6. What's more, it is environment-friendly instead of adopting an effective dust collecting unit to get rid of dust;
7. The rice milling part of the equipment adopts negative pressure rice milling technology, which has low rice temperature, no chaff, and fewer broken rice rate;
9. According to the requirement of the crafting flow, “one” arrangement, the main operations are concentrated in the middle, convenient to operate;
10. High-strength vibration-absorbing bearing configuration, the machine body moves smoothly, is firm and reliable, has low vibration, low noise, and low dust;
